    SXGA-C130   HD CCD Camera




     Introduction:




  SXGA-C130 HD 1.3MP Camera，The product is widely used in microscopic image observation, which can effectively reduce visual fatigue, change from eyepiece observation to visual inspection, reduce the intensity of visual observation, greatly improve the detection accuracy and efficiency. The user-friendly menu settings, easy to operate and learn, and real-time image transmission directly with the display screen are of great help to process judgement and quality analysis.




  Characteristic：

  1. VGA digital signal output, directly connected to the industrial camera display;
           2. High definition 1.3 million pixels, supporting 1280*1024, 1280*720 resolution switching;
          3. Scanning line by line to ensure clear picture without flickering.
          4,60/fps high-speed image acquisition, no shadow, delay phenomenon;
          5. New functions such as suppressing strong light and edge contour enhancement are added.
          6. Built-in center cross or vertical and horizontal four movable lines, which can move in full screen range;

  7. New color algorithm to ensure the true reproduction of image color;

  8. Humanized menu with automatic hiding function

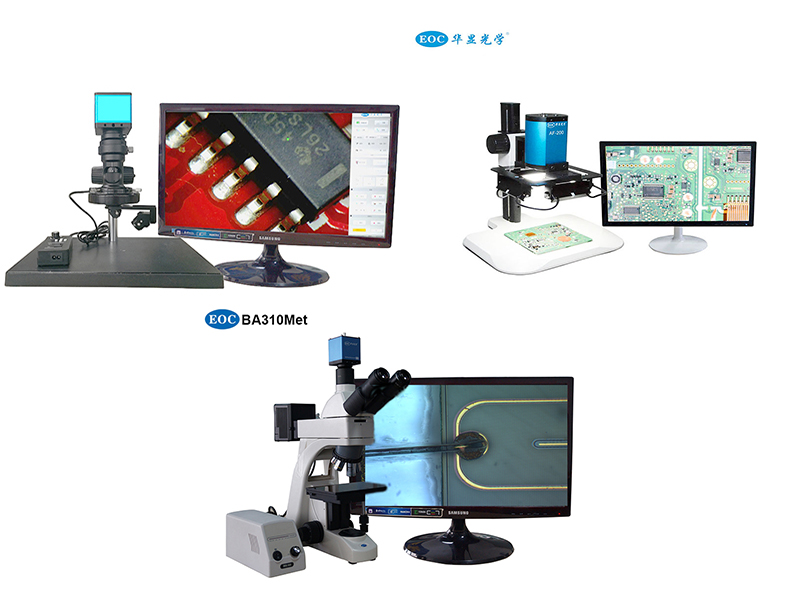

   Application：



•   SXGA-C130   HD CCD Camera




  Specification:

  Model	SXGA-C130
  Pixel	130萬像素
  Resolution	支持1280*1024、1280*720分辨率切換
  Sensor	1/3英寸
  Frame	60/fps
  White Balance	一鍵式設置，可手動或自動調(diào)節(jié)
  Suppression of strong light selection	3 levels adjustment
  Edge Enhancement Mode	3 levels adjustment
  Color adjustment	R、G、B 3 colors
  Built-in crossbar	Built-in central cross or 8 (four horizontal and four vertical) movable lines
  Output	VGA
  Lens interface	C type interface
  Ouput voltage	DC-5V
  Dimension	49*49*47mm
  Wroking temperature	0-80℃
  Photograph and memory funtion	No
