E系列工具測量顯微鏡

• 描述

• 參數(shù)

• 應(yīng)用&視頻

• Brand Name：EOC




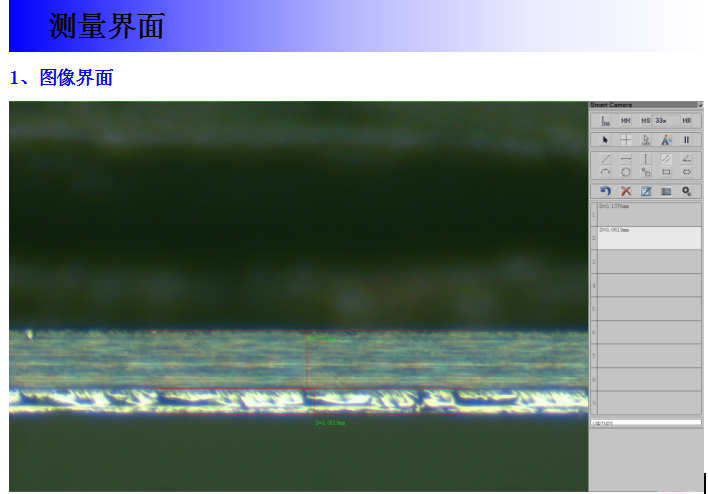

  Innovative advanced technology, using HDMI digital signal, can achieve precision measurement without PC host. High-pixel, high-definition, using 2 million pixels, comparable to the effect of 3CCD camera, 30 frames per second high-speed scanning; with automatic edge-finding sampling function to achieve measurement accuracy; the system provides rate calibration and real-time storage, measurement data and pictures can be saved in real-time through SD card, industrial camera can achieve document conversion, so that you can more easily achieve measurement operation.


  No PC host is needed to connect the industrial camera of the display directly.

  Scanning line by line ensures clear picture without flickering.

  Unique use of SD card as storage device;

  The brilliant color is comparable to 3CCD camera.

  Functional menu display, easy to adjust;

  8:8:8 RGB full color display output;

  Constant output of 30 frames per second, no delay;

  Measurement function, farewell software installation, simple and fast operation;

  The measurement results are accurate, the display accuracy is 0.01um and the measurement accuracy is 0.003mm.





















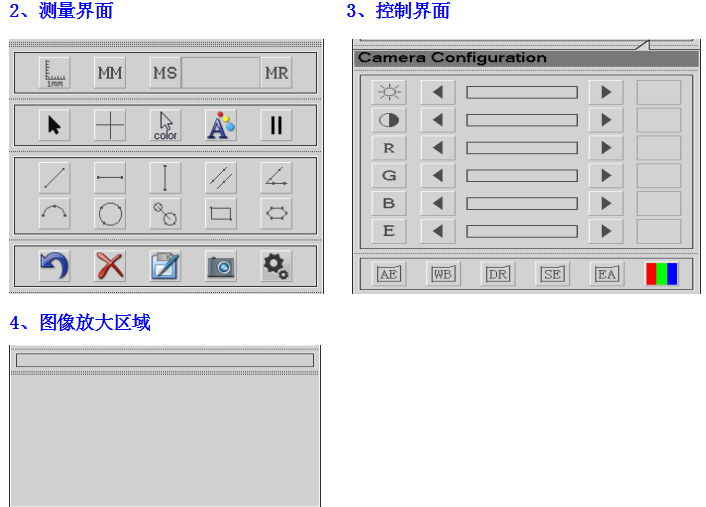

        測量工具的詳情：












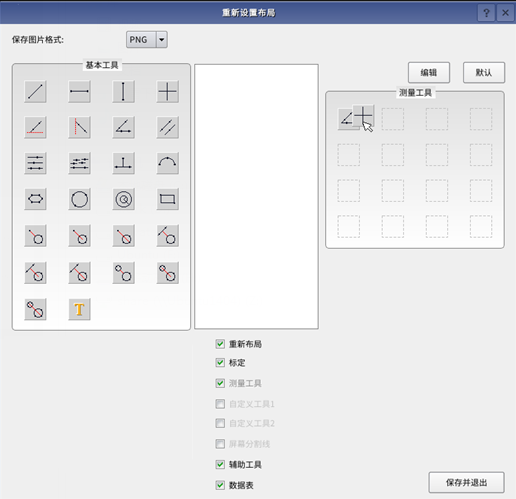

  A. Two Points Line: Two Points to Draw a Line Section
  B. Point to line: Line point to point and then draw a line by selecting two points. Measure the distance between the first point and the line.
  C. Parallel line: First draw a line through two points, and then find another point on another line. The second line will be drawn automatically. The system will automatically measure the distance between the two lines. Multiple parallel lines can also be measured.
  D. Angle: First draw the line segment, then measure the angle between the horizontal line and the vertical line. The angle between two lines can also be measured by drawing two lines.
  E. Rectangle: Two points can be selected, and the system draws a rectangular square based on these two points.
  F. Polygon: According to the location of the polygon, the system can automatically connect the points. When choosing the last point, you can press the right mouse button, so that the system will automatically connect the last point after the first point to form a closed graph. Note that polygons can only select 10 points at most.
  G. Radius: You can draw an arc from three points.
  H. Circle: A circular industrial camera can be drawn by taking a circle from three points.
  I. Point to center: First select a point, then draw a circle through three points. The system will automatically measure the distance between the first point and the center line, or the shortest and longest distance on the circle.
  J. Line to circle: First draw a line through two points, then find a circle and draw a circle by taking three points. Measure the distance between the center of the line and the center of the circle or the shortest and longest distance on the circle.
  K. Distance between two circles: Draw two circles by taking circles from three points. The system automatically measures the distance between two centers, the shortest or longest distance industrial cameras.
  L. Concentric circle: You can draw the first circle by three points and drag the mouse to select one point at the edge of the second circle to draw the second circle. Both centers are the same.
  M. Cross centerline: A cross centerline can be generated.











               Application

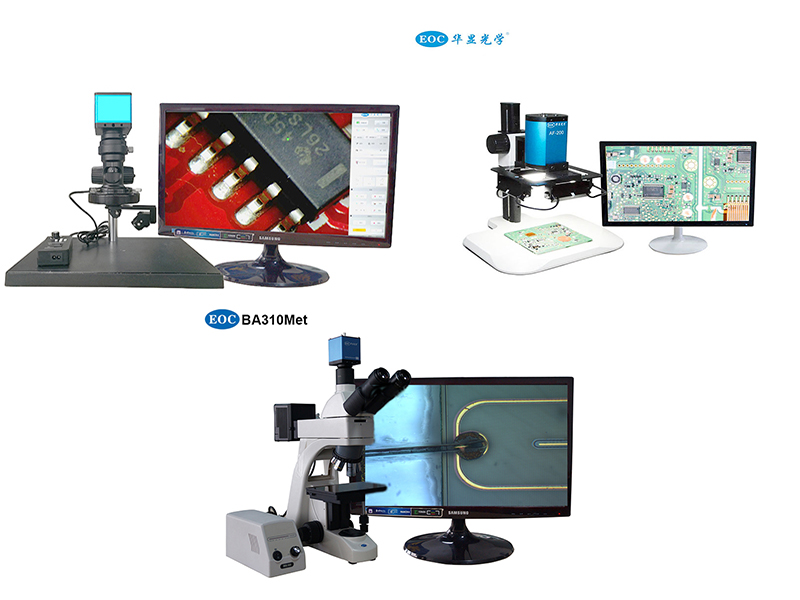

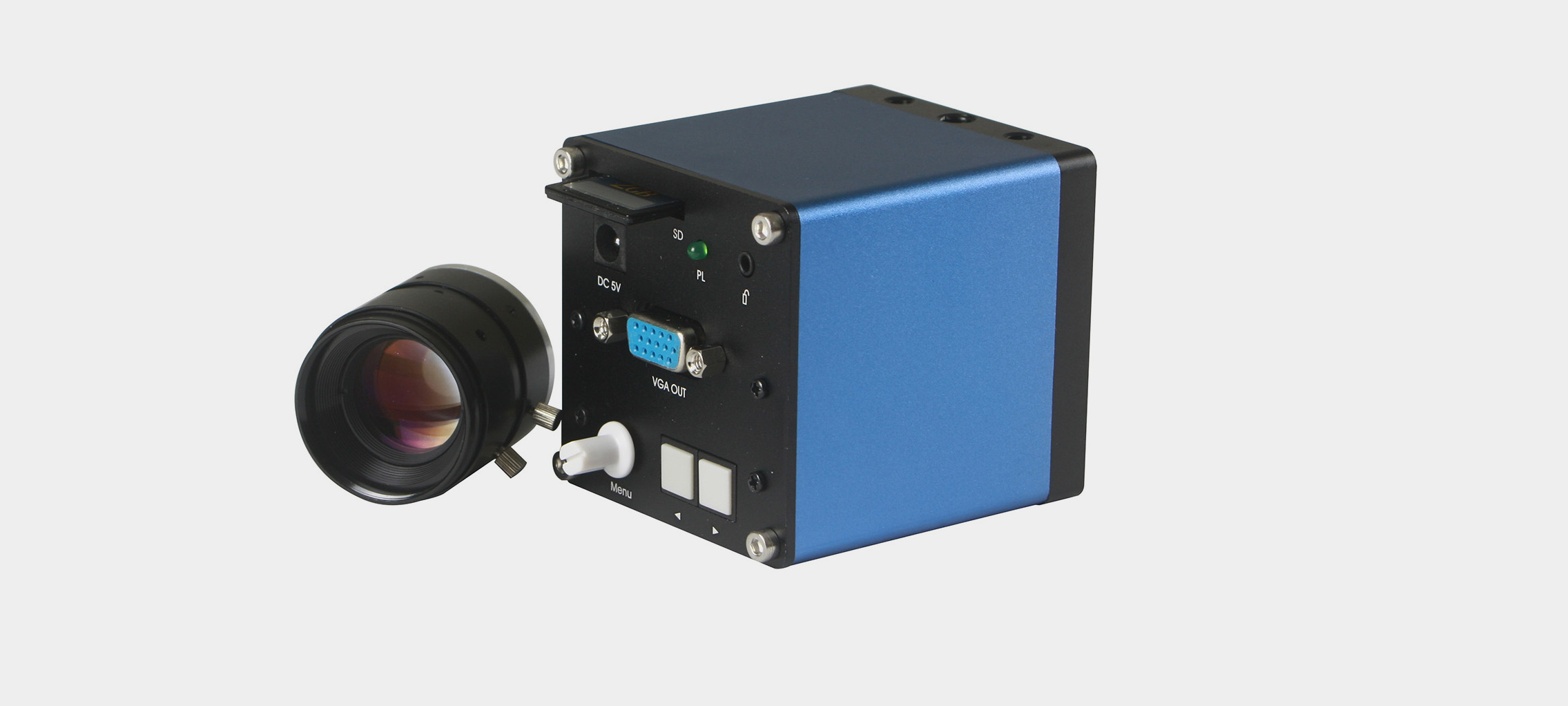

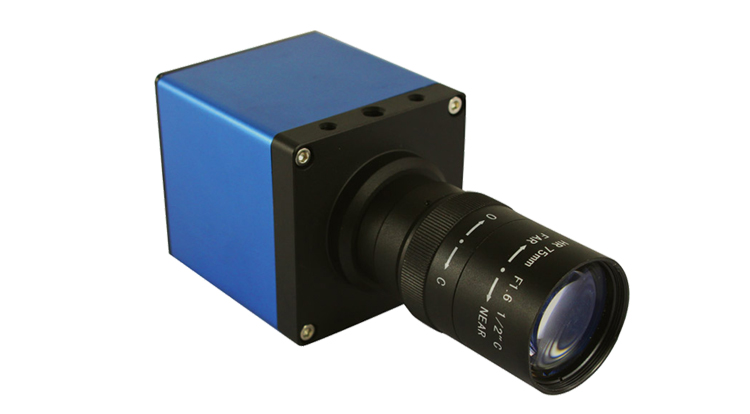

• SXGA-200C HD Measuring CCD camera




  Model	SXGA-200C
  Sensor	1/3 inch
  Pixel	2.0 Mega Pixel
  Resolution	1920*1080
  Frame	30/fps
  Measurement	Line, circle, angle, arc, center distance, parallel line, arbitrary figure, etc.
  Calibration memory	Six sets of calibrated memory can be set arbitrarily.
  Point catching	Direct point catch and Area point catch
  Area Magnification	The mouse observation area can be enlarged 4r times.
  Mouse color	red/green/blue/black/white
  Mouse shape	Standard/Cross
  Output	HDMI digical interface
  Memory	Pictures and tables with measurements can be stored
  Power Supply	DC-12V
  Dimension	61*61*72mm
  Working temperature	0~70℃
  Operation	Mouse control
