  Product Description：

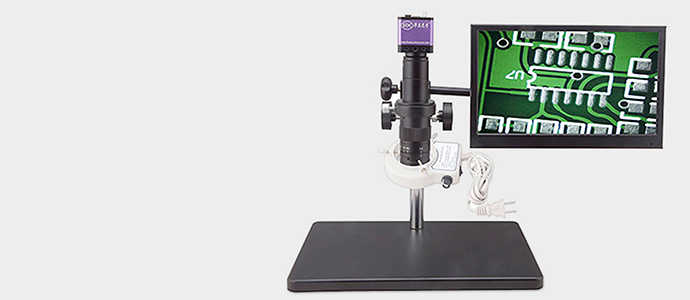

  H-130Video Microscope, is a perfect combination of 1.3MP CCD camera and zoom lens, which has the functions of restraining strong light and edge enhancement, and it is suitable for the detection for different products with different material. Video Microscopes are widely used in Semiconductor Electronics, SMT, Hardware and Plastics area. To meet the requirement of surface defect detection and manufacture process analysis and testing.

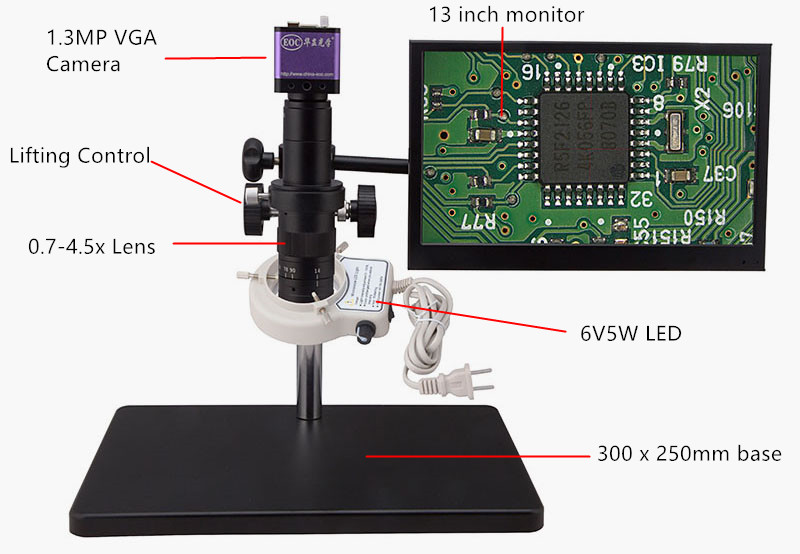

         Characteristics：




      1)   1.3MP High Definition,  Resolution is up to 1280X1024.；

      2)   VGA interface, 60/fps camera；

      3)   13.3 inch IPS high brightness LCD Monitor, no dark angle display；

      4)   With strong light and edge enhancement function, the imaging effect is superior；

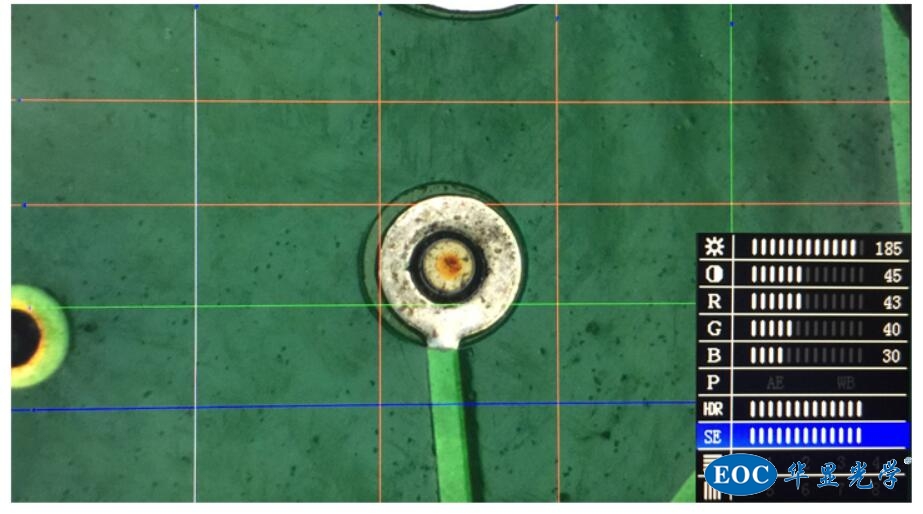

      5)   4 Vertical calibration lines + 4 Horizontal calibration lines;

      6)   Pixel customize: 2.0MP/5.0MP/6.0MP/16MP/20MP, HDMI/USB

      7)   Camera function customize: taking photo, taking video, measuring, screenshot, comparing, image stitching...










•

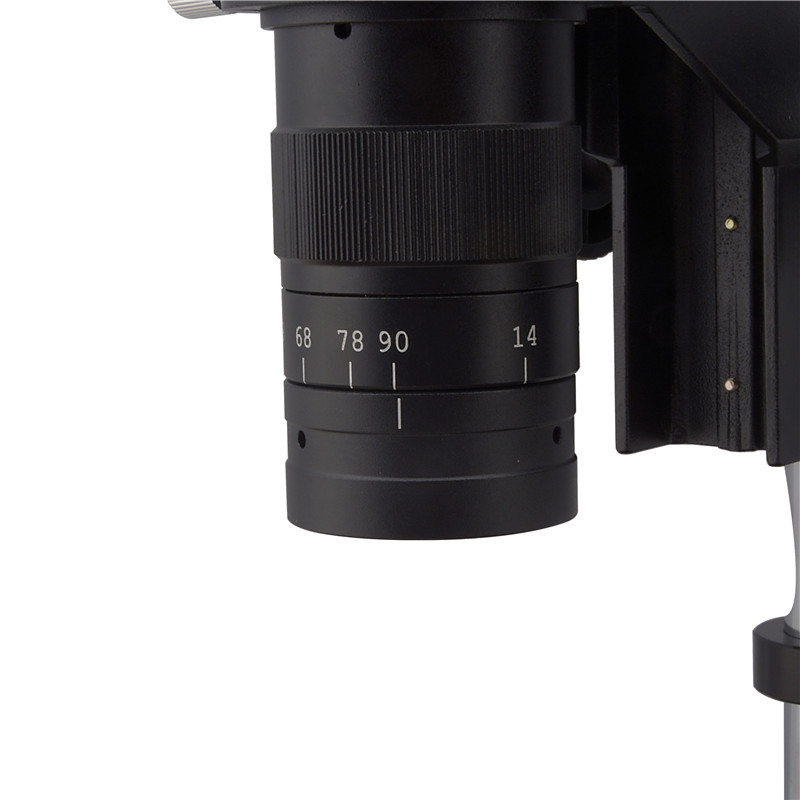

  Magnification	0.7x~4.5x
  Lens tube	0.5x/1x
  monitor	13寸（HDMI/VGA interface）
  Digital magnification	16.5x-106x 33x-212x
  Output	VGA
  lighting	Led ring lighting
  Resolution	1280*720/1280*1024 adjustable
  Frame rate	60 fps
  Sensor size	1/3
  Brightness	adjustable
  Contrast	adjustable
  Color adjustment	R、G、B adjust independently
  Balance	One button balance
  Exposure way	Manul/automatic
  Image storage	none

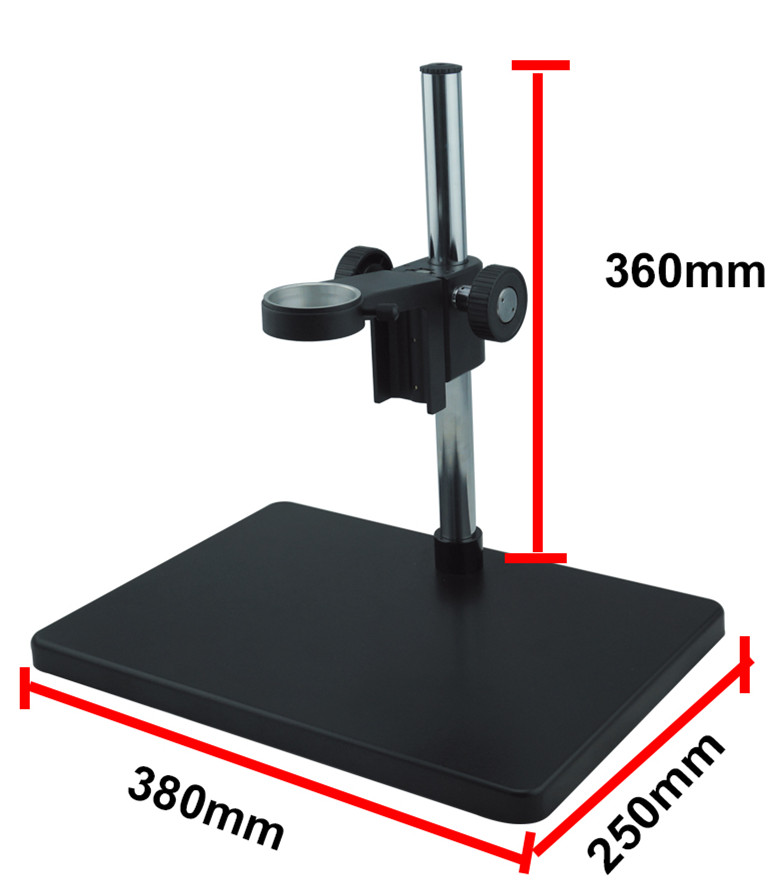

  Stand	Column bracket size：380*260*20mm Lifting range:300mm Focusing range:25mm










•

                         pcb                               soldering inspection                   component observation
