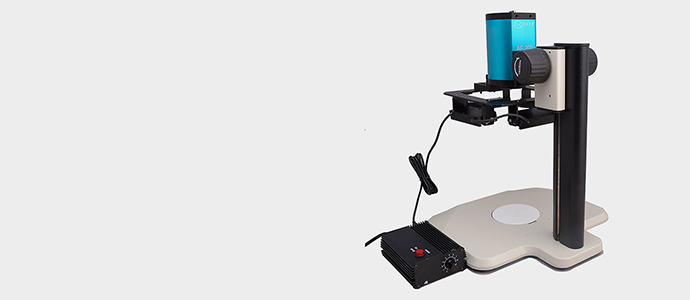

• AF-200 Autofocus Video Microscope











  Product features:

  1)  Auto focus, not need to adjust focal length.

  2)  High-definition real-time imaging,1080P real-time screen.

  3)  Macroscopic observation, microscopic magnification detection.

  4)  The light source with four positions can be adjusted.

  5)  Can choose oblique lighting system and fiber halogen light source。

  6)  Support 21.5 inch LCD real-time display.

  7)  Widely used in: scientific research, industrial testing, teaching lamp field.

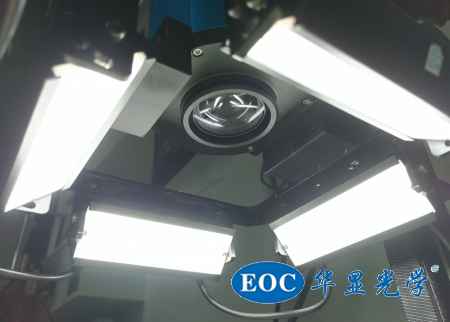

  8)  Four position light source, omnidirectional lighting









• Model	AF-200
  Item	Video Microscope Auto-Force
  Electronical Magnification	10× - 140×
  Optical System	EOC Infinity optical system
  Resolution	1920×1080     60/FPS
  Pixel	2.0 MP
  Lighting	4 positions light source, omnidirectional lighting

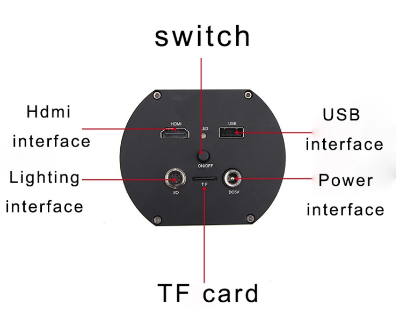

  Display interface	HDMI
  WD(Working distance)	300mm is standard
  Max view field	350×350mm
  Display interface	HDMI
  Standard display size	21" (not included)
  Base and Lifting parts	Pillar Stand + Flat base (black colour)
  Function	Auto-Force, Photograph A/M Automatic/manual White balance TF card storage 4 horizontal and vertical Datum Line




•
