  Characteristic:

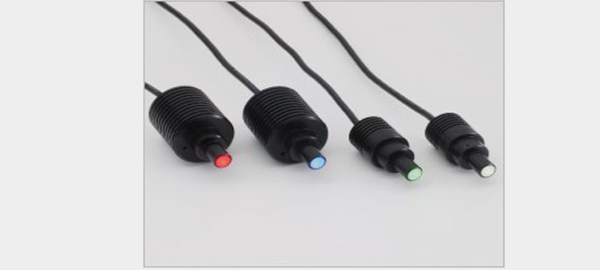

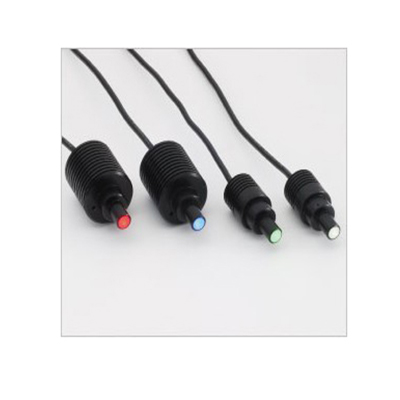

  1. Point light source is a uniform circular spot formed by LED focusing through a focusing lens. It has red, white, blue, purple, green and other color options, which can be customized.
  2. Counter-alignment is suitable for microscope head and telecentric lens with coaxial aperture. Compared with optical fiber halogen lamp, it has the advantages of constant brightness, uniform chroma and long service life. It is the best choice for industrial applications.
  3. High power LED, high brightness and good uniformity
  4. Light-emitting area is small, compact and easy to install.
  5. Efficient heat dissipation, greatly improving service life
  6. The brightness of point light source can be customized according to customers'requirements.








       Application:

  1. Mark Point Location, Detection of Micro Elements
  2. Visual system suitable for installation with small space
  3. It can be used with a microscope head.
  4. Use of LED Crystal Fixing Machine, etc.

• Point Led Light specification:




  Type	Model	Output（Blue/Green/White）	Output(Red/Infra-red)	Color	發(fā)光尺寸	PDF	3D
  LED Standard	MV-I(W,R,G,B,IR,UV)	5V/1.0W	5V/1.0W	Blue/Green/White/Red/Infrared	8mm
  LED High brightness	MV-I(W,R,G,B,IR,UV)-ZL	5V/3.0W	5V/3.0W	Blue/Green/White/Red/Infrared	8mm
