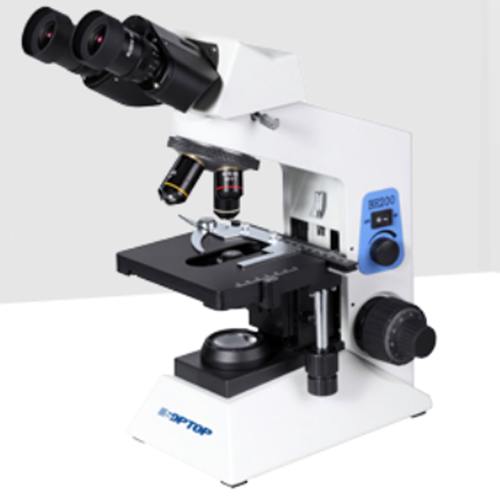

  New chromatic correction optical system.

  Popularly and newly microscope body design.

  Higher level resolution ratio and image quality.

  Designed to be used in teaching applications, lab, medical and scientific research




• Observation tubes	lBinocular head,inclined 30 degrees and rotating
  	lTrinocular head with light splits 80%:20%
  	54-75mm interpupillary distance，±5 degrees diopter control
  Eyepiece	l  PL10X/18mm, High eyepoint ,widefield plan eyepiece l  PL10X/20mm, High eyepoint ,widefield plan eyepiece
  Objective	Infinity high contrast achromatic objective:4X、10X、40XS、100XSO Infinity plan achromatic objective:4X、10X、20X、40XS、100XSO lInfinity plan achromatic objective: 4X、10X、20X、40XS、100XSO
  Nosepiece	Quadruple/quintuple with click stop
  Focusing adjustment	Coaxial coarse and fine focusing adjustment,with limited and tension adjustment,coarse adjustment range: 28mm，fine adjustment precision：0.002mm
  Stage	low position coaxial mechanical stage,size:140x132mm travelrange:76x50mm
  	low position coaxial mechanical stage,size: 150x140mm travel range:76x50mm ,with two sets clips
  Condenser system	lCritical illumination,rack & Pinion focusable 1.25NA Condenser,fixed center
  	l   Koehler illumination, rack & Pinion focusable 1.25NA Condenser,adjustable center
  Illumination	Variable voltage 90V～240V，halogen 6V/20W with intensity control
  	Variable voltage 90V～240V，  3W LED lamp with intensity control
  Photography adapter	3.2x photo eyepiece ,photo tube（with PK mount）
  Video   adapter	0.35X CTV
  	0.5X CTV
  	0.5X CTV
  Other options	Phase contrast sliders for condenser（use with phase contrast objective）
  	Dark field slider for condenser
  	Simple polarization (with analyse and polarize)
