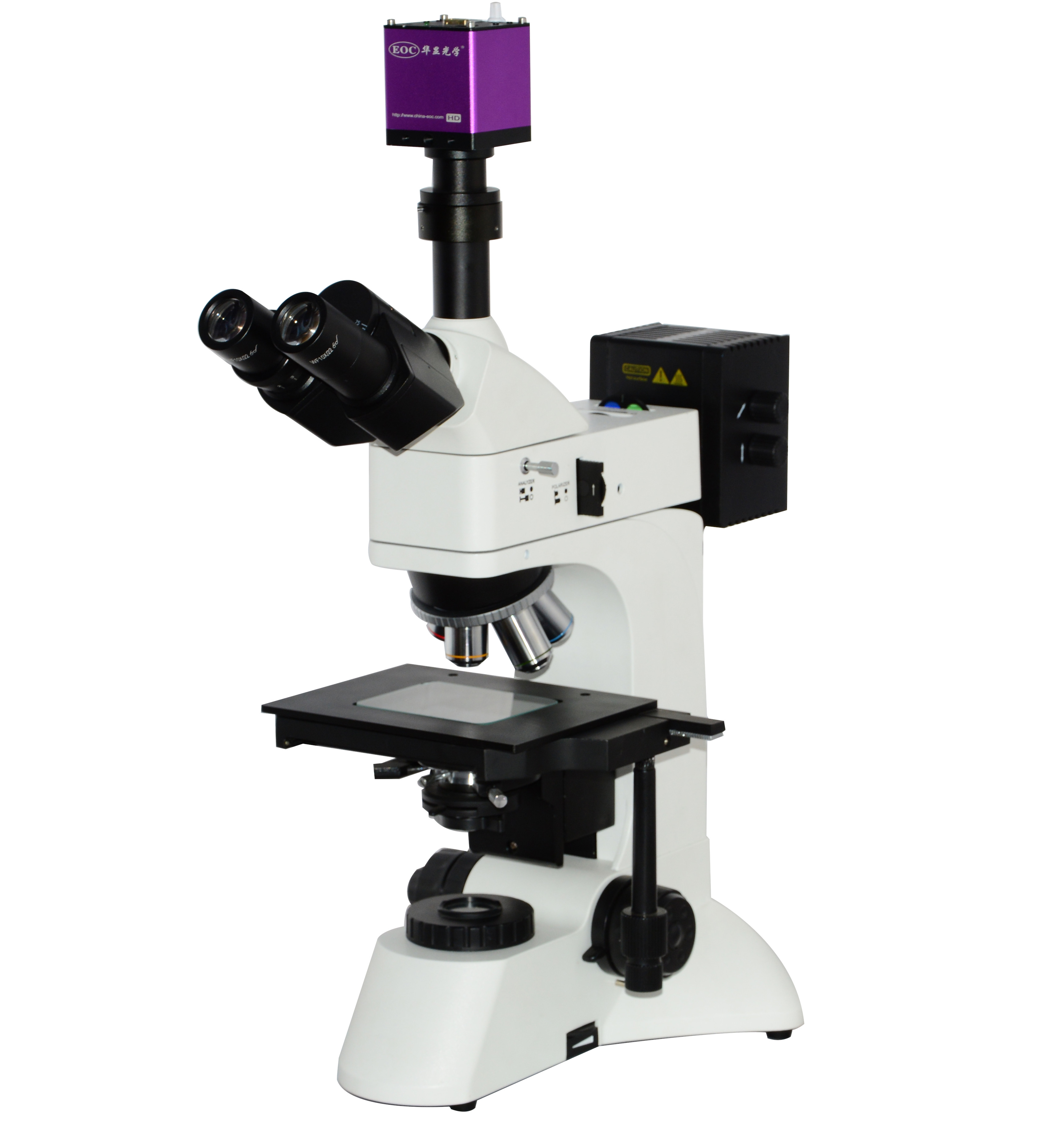

  HXJ-3230  reflected and transmitted microscope is suitable to observe surfaces of non-transparent object or transparent object.It is equipped with vertical illuminator, infinity plan achromatic objectives with long working distance (no cover glass), wide-field eyepieces and set polarizer device in trinocular. It provides clear and high-contrast image, beautiful sculpt,convenient control, etc. It is the ideal instruments in research work in biology, Metallurgical, mineralogy,  precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and factory.




  Features
  ▲   With infinity plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces, can get clear pictures and wide view field.
  ▲   Coaxal coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
  ▲   Movement of stage: 30mm
  ▲ With vertical illuminator and transmitted illuminator, can observe surfaces of non-transparent object or transparent object.
  ▲  Trinocular, can switch to observe normally or to observe the Polarize, can send 100% of light to the binocular eyepieces or to the top port.

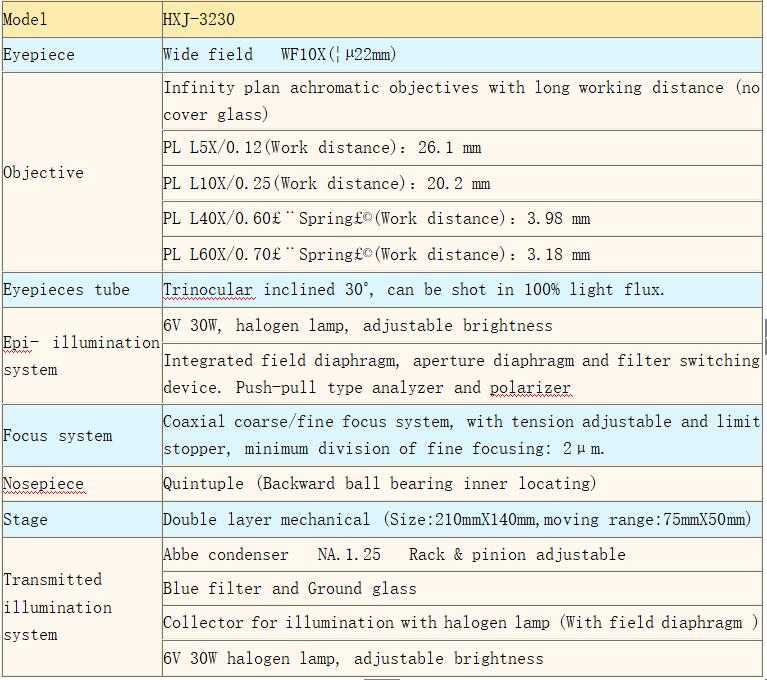

  Standard Configuration




•
